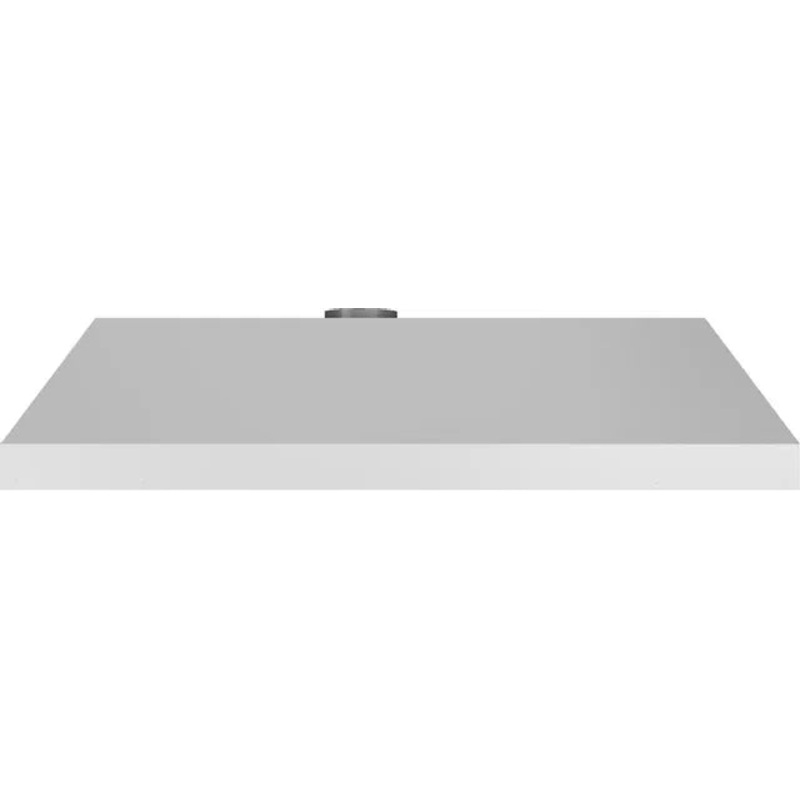

Transform your kitchen with the Vent A Hood 52 3/8” Wall Mount Liner Insert. With a powerful 300 CFM, this insert efficiently removes smoke and odors from your cooking space. Enjoy a cleaner and fresher environment while showcasing a sleek and modern design. Elevate your cooking experience today!

Features

Quiet

Turn on a Vent-A-Hood and youll hear only a whisper of air movement, because the Magic Lung system provides the quietest ventilation available. Vent-A-Hoods with LED lights also feature SensaSource . SensaSource raises the blower speed from low to high based on temperature for optimal grease control, fire safety, and even quieter operation.

How quiet is a Vent-A-Hood? The test results shown below were generated at a certified independent industry testing lab. All tests were measured at full speed to demonstrate the most accurate sound rating (other manufacturers may use lower speeds for testing which don’t reflect accurate operating sound levels).

Vent-A-Hood’s Magic Lung “multi-blower technology” allows CFM to double, triple, or quadruple with very little effect on sound levels.

Efficient

The powerful Magic Lung blower traps all cooking contaminants, liquefies grease vapor and removes heat-polluted air. Because the Magic Lung blower combines sufficient air pressure and constant speed with centrifugal filtrationand because it doesnt pull air through a filterit is the most efficient kitchen ventilation available today.

Easy-Cleaning

The Magic Lung housing snaps apart for easy cleaning in the dishwasher or with warm, soapy water. Moreover, the Magic Lung is the only ventilation system that collects the grease in the easily cleaned housing rather than in hard-to-reach areas behind a mesh or baffle filter.

Fire-safe

The Magic Lung is the only residential ventilation system on the market today that prevents fire from spreading to the rest of the home. Constant speed creates centrifugal pressure that prevents fire from entering the ductwork. As needed, SensaSource increases blower speed to its normal level to maintain this safety feature.

Powerful

Magic Lung blowers can be configured to provide the power you need for even the most demanding cooking surface. Each highly efficient Magic Lung blower supplies 300 CFM of air movement; you can combine multiple blowers in a single Vent-A-Hood to create the perfect ventilation for your cooking surface.

Special Notes: LED lights. This model is not available with heat lamps.

Specifications

• Range Hood Type: Insert
• Ada Compliant: No
• Energy Star Certified: No
• Outdoor Approved: yes
• Appliance Fit Width: 54
• Smart Compatible: No
• Maximum CFM: 300
• Bulb Type: LED
• Sone rating: 5.4
• Vent Location: Top
• Height Above Cooktop: 30
• Voltage: 115
• Amp: 2.5
• Frequency: 60
• Noise Level: Standard High
• Ventilation: Ducted

Dimensions

• Width: 52 19/50 Inches
• Height: 12 Inches
• Duct Size: 6 Inches
• Depth: 22 1/2 Inches
