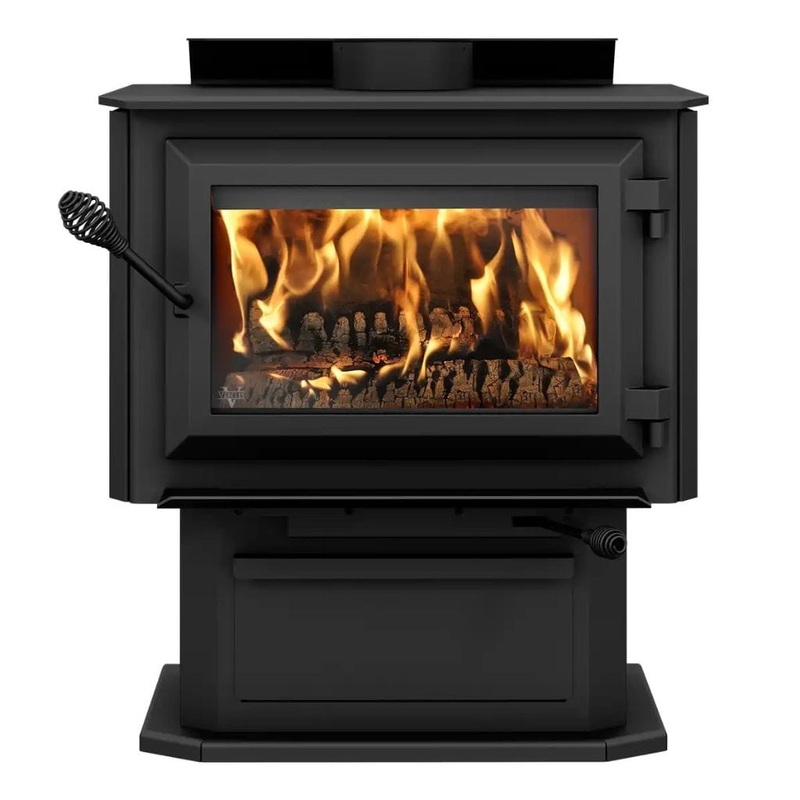

HES170EPA-Certified Ventis Wood Stove VB00013 Product Details

Why is the Ventis HES170 EPA-Certified Wood Stove VB00013 the ultimate choice for powerful and eco-conscious home heating?

The Ventis HES170 EPA-Certified Wood Stove VB00013 is the ultimate choice for powerful and eco-conscious home heating. Featuring advanced EPA certification, it delivers high heat output with minimal emissions, making it both efficient and environmentally friendly. Its robust design ensures durability and reliability, while its large firebox allows for extended burn times. Perfect for those seeking a sustainable and effective heating solution, this wood stove combines performance, style, and eco-responsibility.

Features:

• Medium size wood stove on pedestal

• Suitable for smaller spaces

• EPA certified at only 1.26 g/h

• Solidity and manufacturing quality

• Non-catalytic combustion technology

• Installation authorized on the Island of Montreal

• Cast iron door

• Top heat deflector and side panels

• Stainless steel heat shield added to the firestop

Manuals for Ventis HES170 EPA-Certified Wood Stove VB00013

• Ventis HES170 EPA-Certified Wood Stove VB00013 Product Catalogue
• Ventis HES170 EPA-Certified Wood Stove VB00013 Installation and Users Manual
• Ventis HES170 EPA-Certified Wood Stove VB00013 Safety and General Information
• Ventis HES170 EPA-Certified Wood Stove VB00013 Fresh Air Kit Installation Instructions
• Ventis HES170 EPA-Certified Wood Stove VB00013 Appliance Dimensions

Specifications of Ventis HES170 EPA-Certified Wood Stove VB00013

• Fuel type: Dry cordwood (16″ recommended)
• Recommended heating area: 500 – 1,800 ft
• Overall firebox volume: 1.9 ft
• Maximum burn time:6 hours
• Maximum heat output dry cordwood:65,000 BTU/h
• Minimum overall heat output rate: 15,650 BTU/h (4.6 kW)
• Maximum overall heat output rate: 23,300 BTU/h (6.83 kW)
• Maximum log length: 18″
• Shipping weight: 328 lb (149 kg)
• Overall dimension (width): 24 7/8″
• Overall dimension (height): 29 1/2″
• Overall dimension (depth): 22 3/4″
• Combustion technology: Non-catalytic
• Stainless-steel secondary-air system: Yes
• Flue outlet diameter: 6″
• Recommended chimney diameter: 6″
• Type of chimney: CAN/ULC S629, UL 103 HT (2100 F)
• Minimum chimney height: 12′
• Door type: Single, glass with cast iron frame
• Door opening size (width): 17 1/4″
• Door opening size (height): 8″
• Glass type: Ceramic glass
• Glass surfaceW x H: 15 5/8″ x 9 1/4″
• Firebox size (width): 19 5/8″
• Firebox size (height): 11 7/8″
• Firebox size (depth): 13 1/2″
• Log positioning: loading over depth
• Firebox lined with refractory bricks: Yes
• Baffle type: High-quality vermiculite
